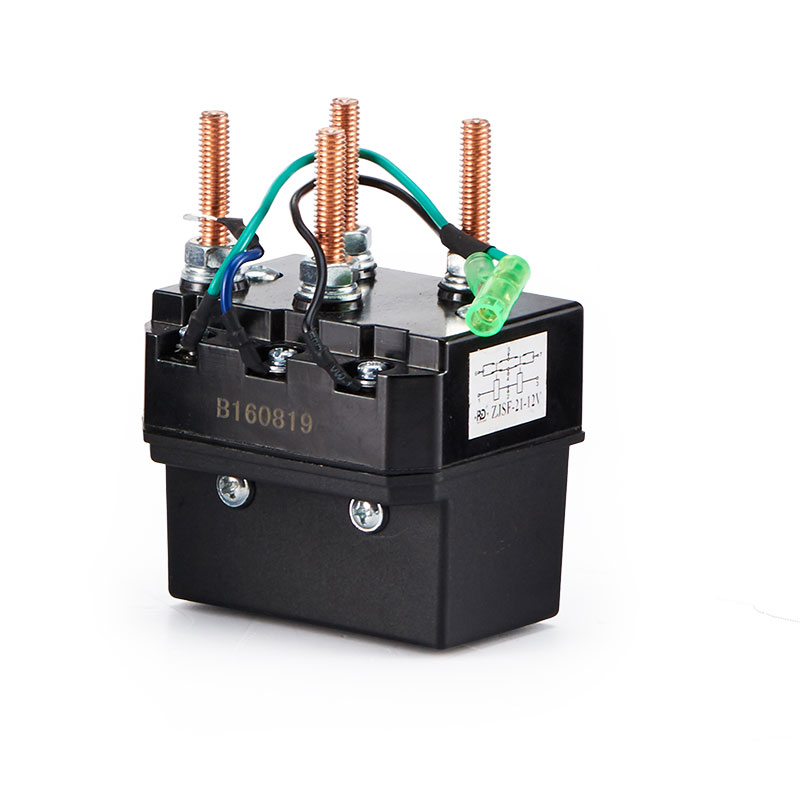

Coil Rated Voltage
DC12V
24V
Main Circuit Rated Current (A)
250A
180A
Under (20±5℃), Cooling Pull-in Voltage
≤8.4（V）
≤15（V）max
Under (20±5℃), Cooling Release voltage
≥1.0（V）min
≥2.0（V） min
Under (20±5℃), Cooling Release Current
≤5.0（A）
≤2.5（A）
Coil Resistance
5±5％
19±5％
Current Maintained at Rated Coil Voltage (A)
0.44（A）
0.24（A）
Acceptable Fluctuation Range of Coil Voltage
±20%
Electrify Time
≤30ms
Disconnecting Release Time
≤20ms
The Max Disconnecting Time of Contacts
≤5ms
Insulation Resistance
≥50MΩ
Main Circuit Contact Voltage Drop Of (load:100A)
≤80mV
Dielectric Strength
50Hz/60Hz 1000VAC/1min
Overload Current
≤7Ie, ≤1s
Coil Consumption (W)
28.0~30.0W
Electrical Life
10,000 times
Mechenical Life
100,000 Times
Working Mode
Intermittent
Contacts Type
2 NO and 2 NC
Contact Material
AgSnO/Cu or AgCuO/Cu
Starting Current
≤4A
Technical Standard
GB14048.4-2010
Dimension
(L*W*H)68mm*55.0mm*94mm
Net Weight480
480g
Altitude
≤2Km
Amblent temperature
-40~+85℃
International protection
IP67
Installation type
III
Way to install
Any
Vibration
2.5g(5~50)Hz
Impact
50g,11ms(Half-sine wave)
Mounting Bolt Pattern:
Dimensions
