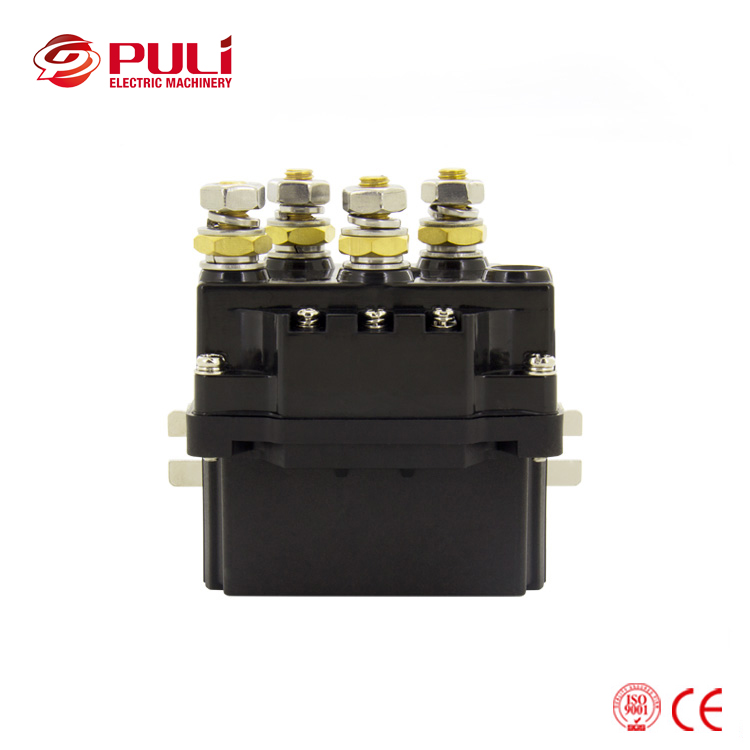

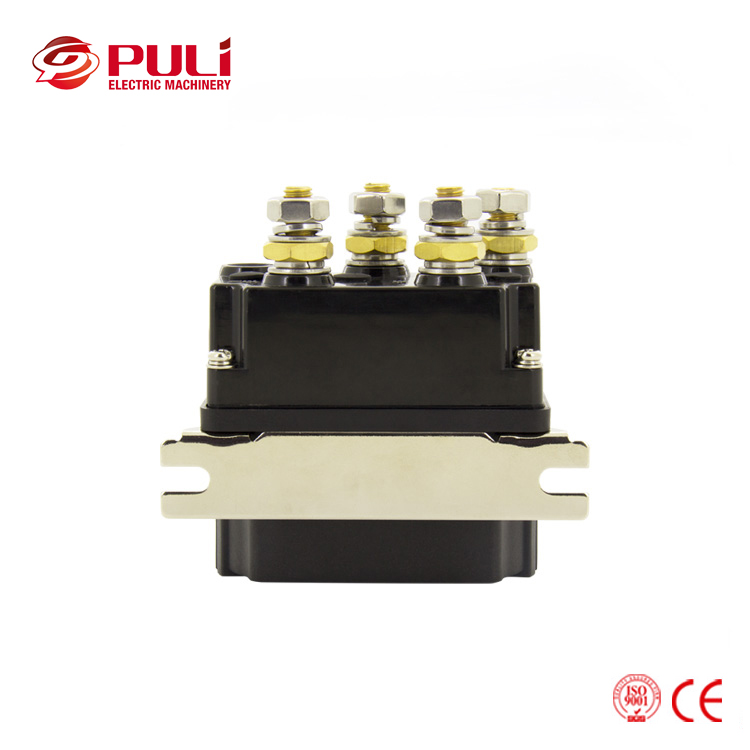

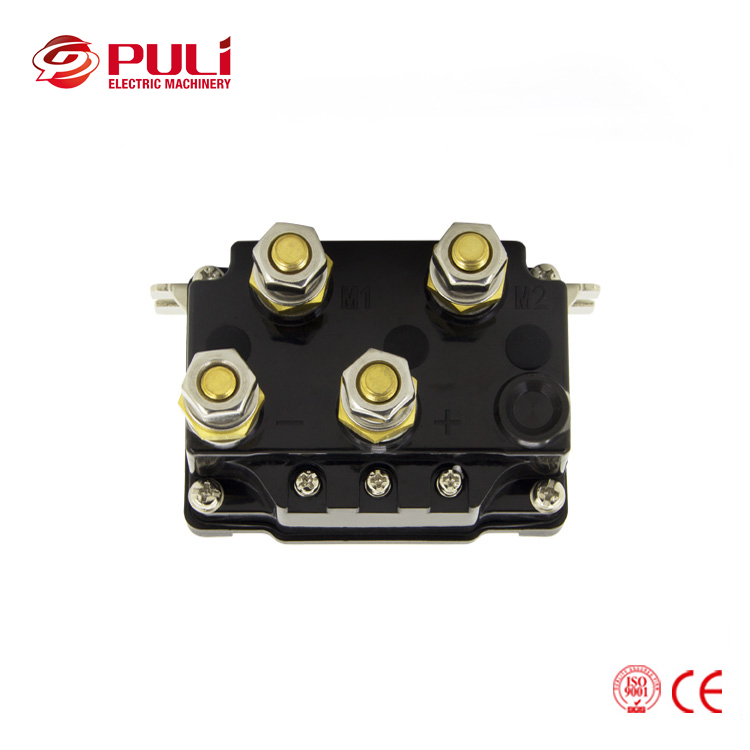

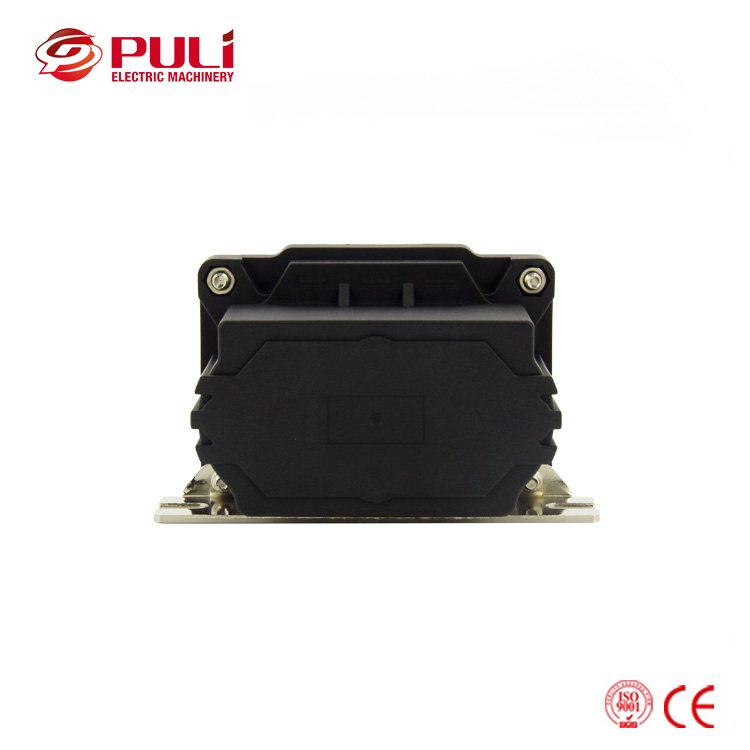

Coil Rated Voltage
DC12V, 24V, 36V, 48V
Main Circuit Rated Current (A)
400A
Main Circuit Contact Voltage Drop Of (load:100A)
≤80mV
Under (20±5℃), Cooling Pull-in Voltage
≤70%
Under (20±5℃), Cooling Release Voltage
≥5%, ≤40%
Acceptable Fluctuation Range of Coil Voltage
±20%
Electrify Time
≤30ms
Disconnecting Release Time
≤20ms
The Max Disconnecting Time of Contacts
≤5ms
Insulation Resistance
≥50MΩ
Dielectric Strength
50Hz/60Hz 1000VAC/1min
Overload Current
≤7Ie, ≤1s
Coil Consumption (W)
≤25.0W
Electrical Life
30,000 times
Mechenical Life
300,000 Times
Working Mode
Intermittent
Contacts Type
2 NO and 2 NC
Contact Material
AgSnO/Cu or AgCuO/Cu
Starting Current
≤4A
Technical Standard
GB14048.4-2010
Dimension
105mm*65mm*98mm(max)
Net Weight
990g
Altitude
≤2Km
Amblent temperature
-40~+85℃
International protection
IP67
Installation type
III
Way to install
Any
Vibration
2.5g(5~50)Hz
Impact
50g,11ms(Half-sine wave)

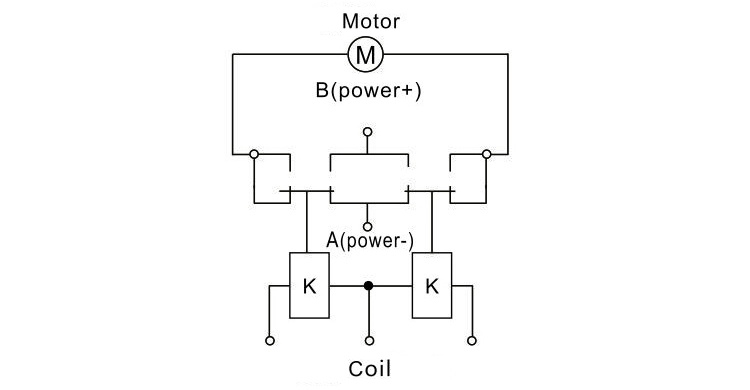

Schematic Diagram:

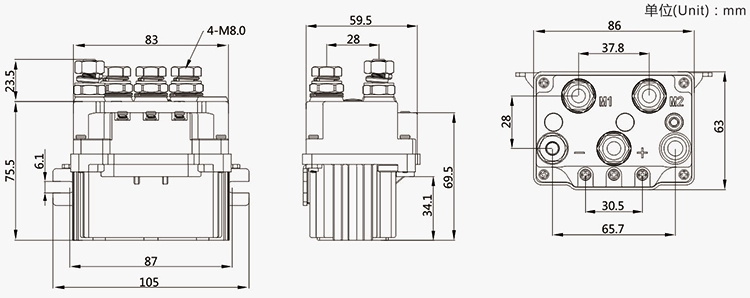

Installation Diagram
